コア基板価格：20,800円(税込 22,880円)
セット価格：66,500円(税込 73,150円)
|
コア基板のデータシート(英語版)
マニュアル(英語版)

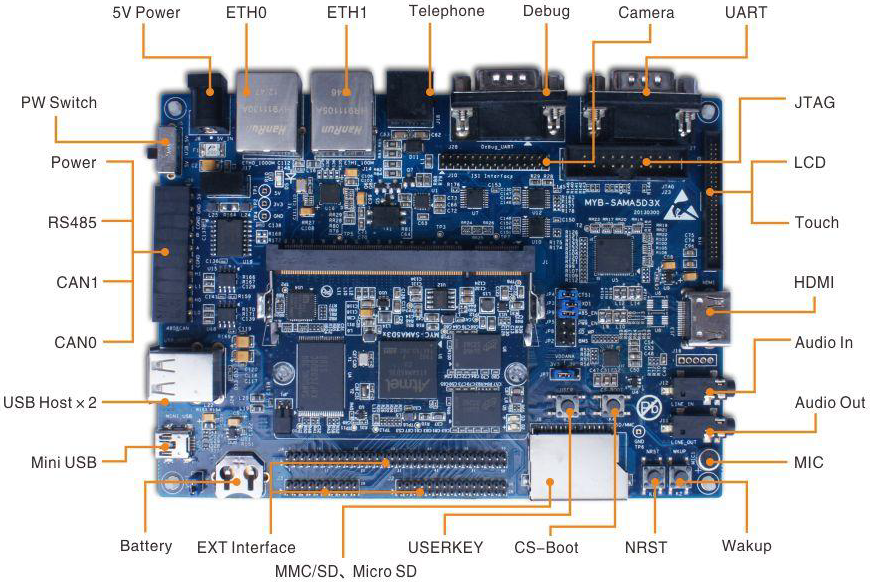

| Name | 5D31 | 5D33 | 5D34 | 5D35 |
| Processor | Atmel SAMA5D31/5D33/5D34/5D35(ARM Cortex-A5 core, Frequency at up to 536MHz)
電力消費: 200mW@536MHz, 0.5mW@sleep, 電池給電システムに最適
|
| Memory | 512MB DDR2 SDRAM |
| Flash | 256MB Nand-Flash Flash , 4MB Data-Flash, 16MB NorFlash(16 Bits) |
| USB | USB HOST | 2 | 2 | 2 | 2 |
Mini USB
Host/Device | 1 | 1 | 1 | 1 |
| Audio | Audio Input | 1 | 1 | 1 | 1 |
| MIC Input | 1 | 1 | 1 | 1 |
| Audio Output | 1 | 1 | 1 | 1 |
| Network | ETH 10/100M
Ethernet Port | 1 | 0 | 0 | 1 |
ETH 1000M
Ethernet Port | 0 | 1 | 1 | 1 |
| Serial | DBGU Serial | 1 | 1 | 1 | 1 |
| USART1 | 1 | 1 | 1 | 1 |
| JTAG | JTAG Interface | 1 | 1 | 1 | 1 |
| LCD | Support 4.3/7.0-inch
Touch Screen | 1 | 1 | 1 | 0 |
| RTC | Real Time Clock On Board and backup battery | 1 | 1 | 1 | 1 |
| Extended Interface | 20 Pins User Extended Interface | 1 | 1 | 1 | 1 |
| 30 Pins User Extended Interface | 1 | 1 | 1 | 1 |
| 60 Pins User Extended Interface | 1 | 1 | 1 | 1 |
| Power | 5V Power Input | 1 | 1 | 1 | 1 |
| SD Card | Micro SD Interface | 1 | 1 | 1 | 1 |
| SD/MMC | SD/MMC Interface | 1 | 1 | 1 | 1 |
| CAN | CAN Interface | 0 | 0 | 2 | 2 |
| RS485 | RS485 Interface | 1 | 1 | 1 | 1 |
| Button | User Button | 1 | 1 | 1 | 1 |
| System Button | 3 | 3 | 3 | 3 |
| Software | Linux | 3.6.9 | ソースコードを提供しております |
| Qt | 4.5.3 |
| Android | 4.0.4 |
|
